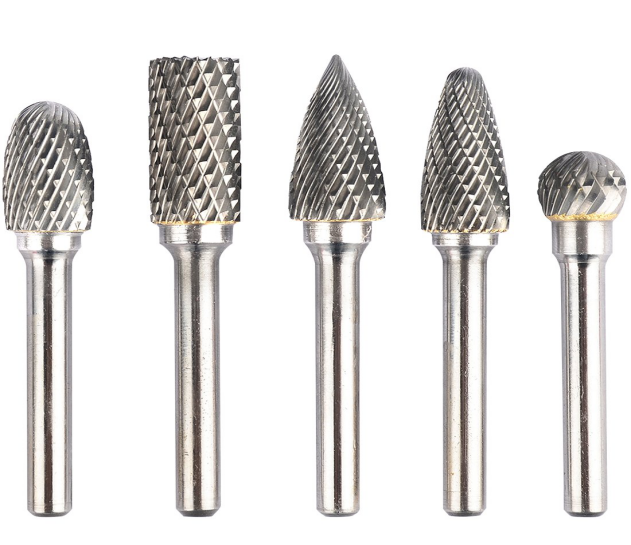

Carbide Burr for Industry

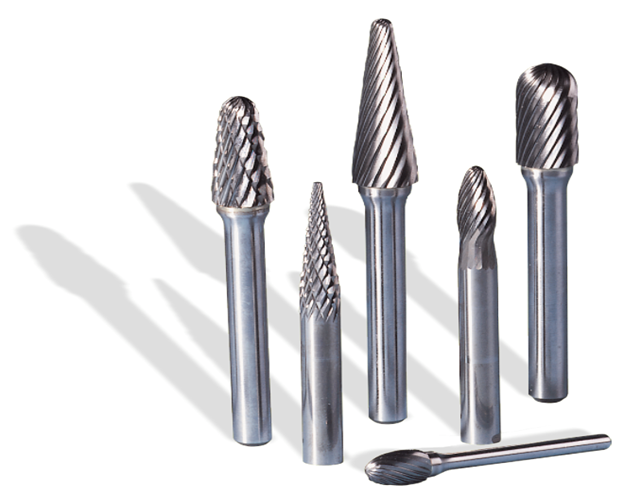

Carbide Rotary Burrs (especially tungsten carbide rotary burrs) are used for cutting, shaping, grinding and for the removal of sharp edges, burrs and excess material (deburring).

Carbide burrs are widely used for metalwork, tool making, engineering, model engineering, wood carving, jewellery making, welding, chamferring, casting, deburring, grinding, cylinder head porting and sculpting. And are used in the aerospace, automotive, dental, metal sculpting, and metal smith industries to name but a few.

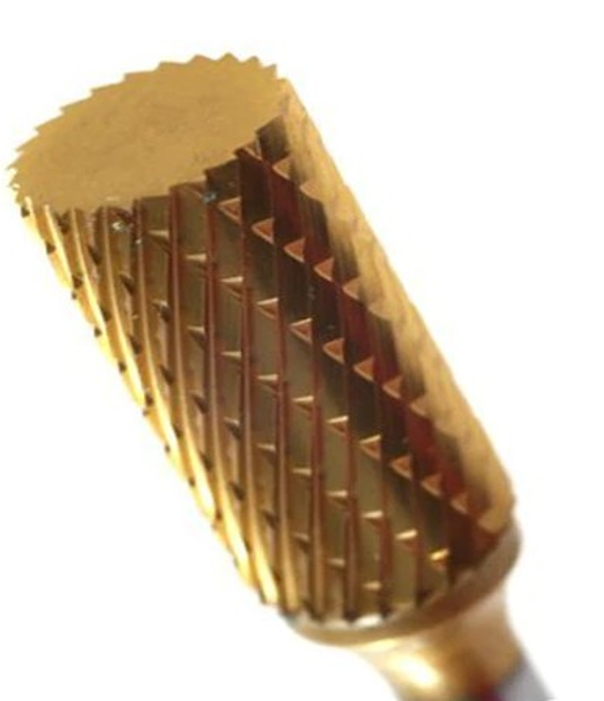

Tungsten Carbide Rotary Burr with Ti Coated – Manufacturer

Tooth Type Choice:

The high-performance tungsten carbide rotary burrs provide maximum cutting edge stability with a simultaneous high tenacity of the cutting edge.

SAIMENG Tungsten Carbide Burr are ideal for shaping, smoothing and material removal.

The tungsten ones are used on hardened steel, stainless steel, cast iron, nonferrous metals, fired ceramics, plastic, hard wood, especially on hard materials whose hardness can be above HRC70.

To de-bur, break edges, trim, pro-cess welding seams, surface processing.

The product has long time operation life and its application range is widely, you can use different shape product according to your application.

Use higher speeds for hard woods, slower speeds for metals and very slow speeds for plastics ( to avoid melting at the point of contact).

The tungsten carbide burrs are mainly driven by hand electric tools or pneumatic tools (also can be used on machine tool).

The rotary speed is 8,000-30,000rpm

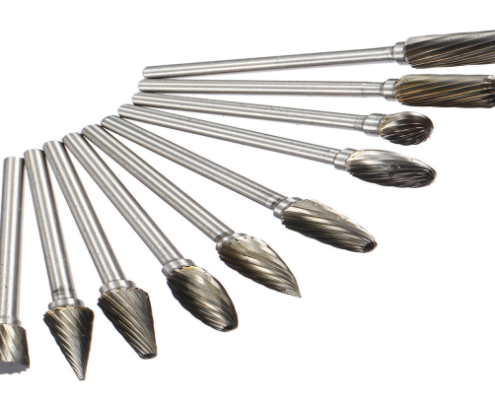

Aluminum cut burrs

Aluminum cut burrs are for use on nonferrous and nonmetallic materials.

It is designed for rapid stock removal with minimum chip loading.

Chip Breaker cut burrs

Chip Breaker cut burrs will reduce sliver size and improve operator control at a slightly reduced surface finish.

Coarse Cut burrs

Coarse Cut burrs are recommended for use on soft material such as copper, brass, aluminum, plastics, and rubber, where chip loading is a problem.

Diamond Cut burrs

Diamond Cut burrs are very effective on heat treated and tough alloy steels.

They produce very small chips and good operator control.

Surface finish and tool life is reduced.

Double Cut

Double Cut: Chip size is reduced and tool speed can be slower than normal speeds.

Allows for rapid stock removal and better operator control.

Standard Cut

Standard Cut: A general purpose tool designed for cast iron, copper, brass and other ferrous materials.

It will give good material removal and good work piece finishes.

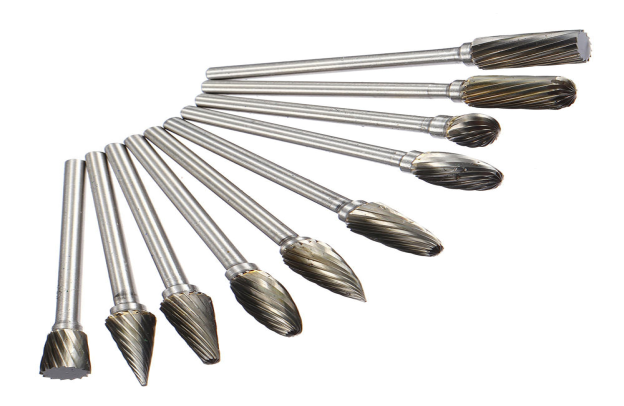

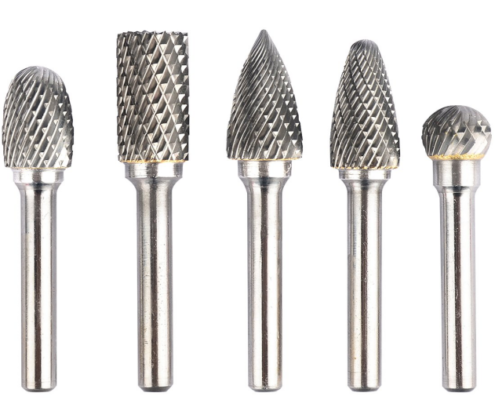

Cylinder Shape – Metric & Fractional SA

Cylinder Shape – Metric & Fractional SB

Cylinder Shape Radius End – Metric & Fractional SC

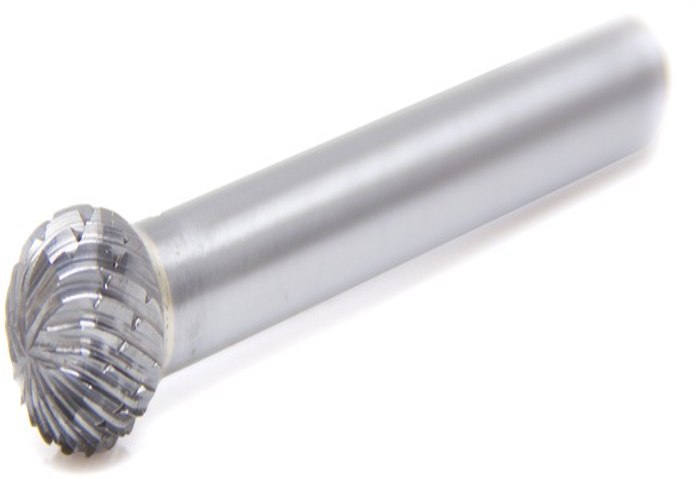

Ball Shape – Metric & Fractional SD

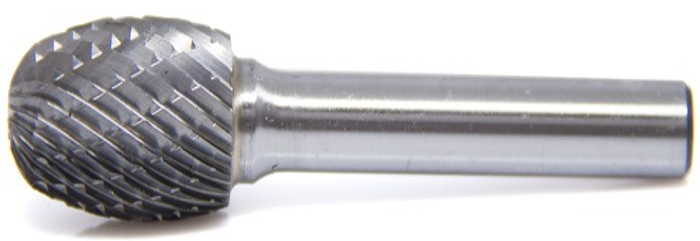

Oval Shape – Metric & Fractional SE

Tree Shape with Radius End – Metric & Fractional SF

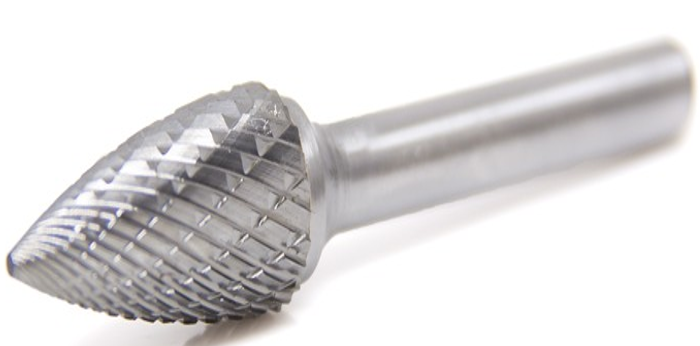

Tree Shape with Pointed End – Metric & Fractional SG

Flame Shape – Metric & Fractional SF

Cone Shape – 60°- Metric & Fractional SJ

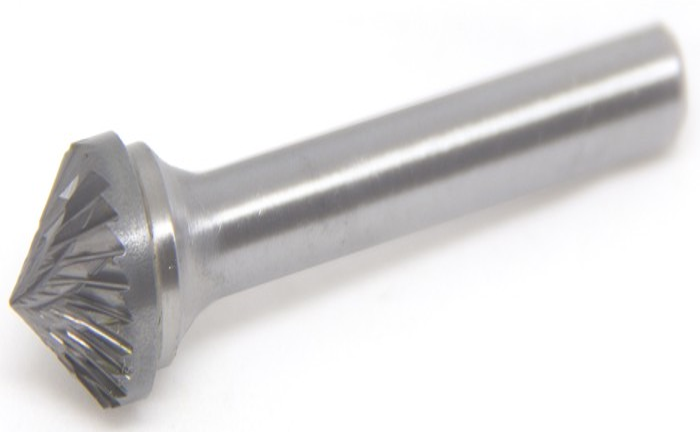

Cone Shape – 90°- Metric & Fractional SK

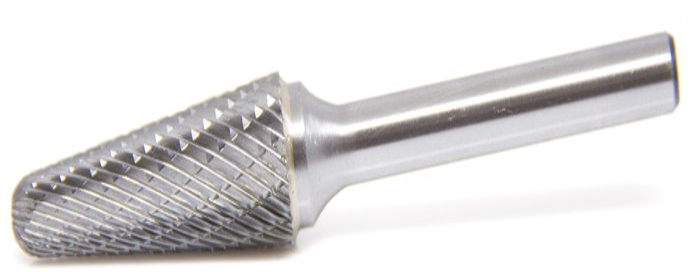

Taper Shape Radius Metric & Fractional SL

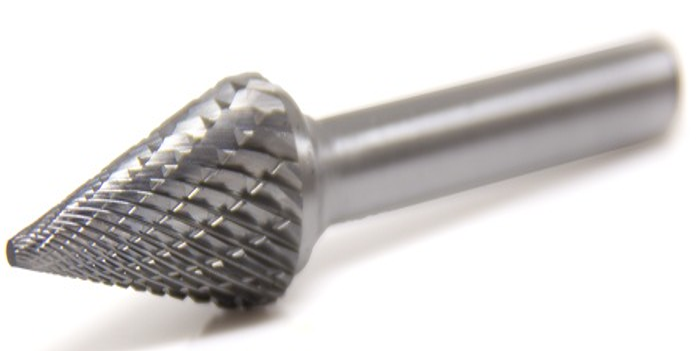

Cone Shape – Metric Metric & Fractional SM

Inverted Cone Shape Metric & Fractional SN

Inverted Cone Shape Metric & Fractional SN
